Description

Product Introduction

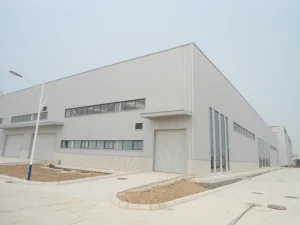

The steel structure workshop is used to process and produce LCD, LCD TV, TFT-LCD flat panel display, LCM module and other products, It was officially put into operation at the end of June 2012, and two production lines were set up, mainly producing AOC displays.

If you want a building that has cost saving, fast erection, good quality control, high durability, steel structure buildings will be the best choice.

As the latest trend in building construction, steel structure buildings increasingly confirmed their outstanding advantages in agricultural, industrial and commercial projects such as warehouse, workshop, factory, storage, showroom, office building, supermarket, school, stadium, logistics center, etc…

What is prefabricated steel structure building?

Steel structure building is built over three members connected to each other by bolts and screws:

Primary members (columns, beams)

Steel columns will be H section steel, square tube steel according to different type of buildings. Steel beams are usually H section steel.

Secondary members (C or Z purlins, bracing…)

Roof and wall sheeting or sandwich panel (EPS, fiberglass wool, PU sandwich panel)

Other building components (Rolling doors, aluminium windows, etc.)

The entire primary members and secondary members are designed and fully fabricated including cut-to-length, punching, drilling, welding and performing in the factory before shipping to the site for erection.

At the site, all components are assembled and jointed via nut & bolt connections; thereby reducing the costs and assembly times.

These buildings can be provided with different structural and non-structural additions such as ventilators, doors & windows, trusses, mezzanine floors, canopies, crane, insulation…, based on the customer’s requirements.
